Line Filters

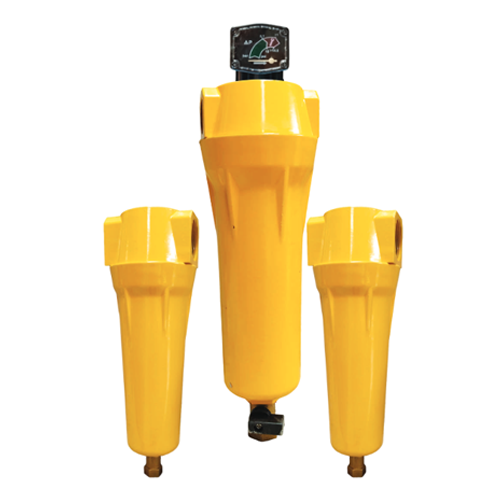

Compressed Air Line Filters
Description
Unfiltered compressed air frequently contains dust, oil,rust, moisture and other harmful substances, and therefore requires filtration. In the first stage of filtration, the compressed air passes through a pre filter and After filter, which creates a coalescence effect. Here bigger particles are absorbed on the filter and the water will condense into larger droplets. In second stage for special application oil removal filter is used to remove oil particles.
Catagories
Pre Filter - Air filtered up to 3 micron. Major Particle's and liquid removed in this filter
After Filter - Air Filtered up to 1 micron. Particle's, Oil and liquid removed in this filter
Oil Removal Filter - Air Filtered up to 0.01 micron. Oil removed in this filter
FEATURES
- Empire Compressed Air filters have High quality large filtering media
- Empire Compressed Air filters have Epoxy resin treated housings
- Empire Compressed Air filters are designed for very low pressure drop
- Particle removal: 0.01 to 50 µm
- Oil retention: 0.03 to 5 mg/m³
- inlet air temperature: 0°C to 80°C
- Also available with Auto drain & element life indicator
Technical Specification - Low Pressure Line Filters
MODEL |
ECI 060 |
ECI 100 |
ECI 150 |
ECI 250 |
ECI 350 |
ECI 500 |
ECI 750 |
|
|---|---|---|---|---|---|---|---|---|
| Capacity | CFM | 60 | 100 | 150 | 250 | 350 | 500 | 750 |
| Variant | - | Q/P/S | Q/P/S | Q/P/S | Q/P/S | Q/P/S | Q/P/S | Q/P/S |
| Max. Pre | Bar | 12.5 | 12.5 | 12.5 | 12.5 | 12.5 | 12.5 | 12.5 |
| Max. Temp | °C | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
| Connection | inch | G¾" | G 1" | G1½" | G 2" | G2½" | G 3" | G 3" |
Technical Specification - High Pressure Line Filters
MODEL |
ECI 060 |
ECI 060 |
ECI 100 |
ECI 150 |
ECI 250 |
ECI 350 |
ECI 500 |
ECI 750 |
|
|---|---|---|---|---|---|---|---|---|---|
| Capacity | CFM | 60 | 60 | 100 | 150 | 250 | 350 | 500 | 750 |
| Variant | - | Q/P/S | Q/P/S | Q/P/S | Q/P/S | Q/P/S | Q/P/S | Q/P/S | Q/P/S |
| Max. Pre | Bar | 35 | 35 | 35 | 35 | 35 | 35 | 35 | 35 |
| Max. Temp | °C | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
| Connection | inch | G¾" | G¾" | G 1" | G1½" | G 2" | G2½" | G 3" | G 3" |
