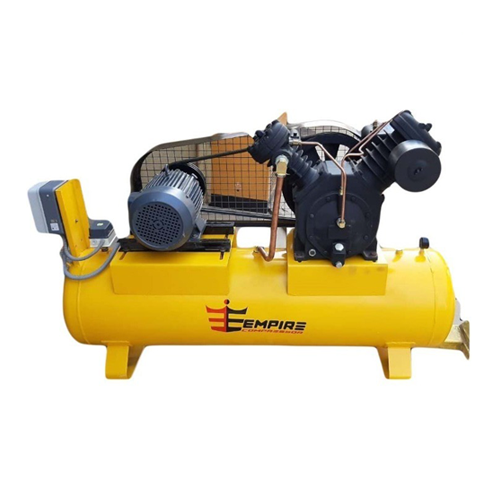

Single Stage Air Compressor
| Model | Motor H.P. |
Piston Displacement | Maximum Pressure | Tank Capacity Liters |
||
|---|---|---|---|---|---|---|
| C.F.M. | L.P.M. | Kg/Cm2 | Psig | |||
| ECI-385 | 3.00 | 15.80 | 430 | 5.62 | 80 | 150 |
| ECI-394 | 5.00 | 26.50 | 750 | 5.62 | 80 | 225 |
| ECI-405 | 7.50 | 40.00 | 1130 | 5.62 | 80 | 250 |
| ECI-67S | 10.00 | 68.10 | 1928 | 4.21 | 60 | 300 |
| ECI-67S2 | 12.50 | 88.00 | 2490 | 2.81 | 40 | 300 |
| ECI-75S2 | 15.00 | 81.60 | 2305 | 3.52 | 50 | 500 |
| ECI-75S2D | 20.00 | 127.80 | 3610 | 2.81 | 40 | 500 |
