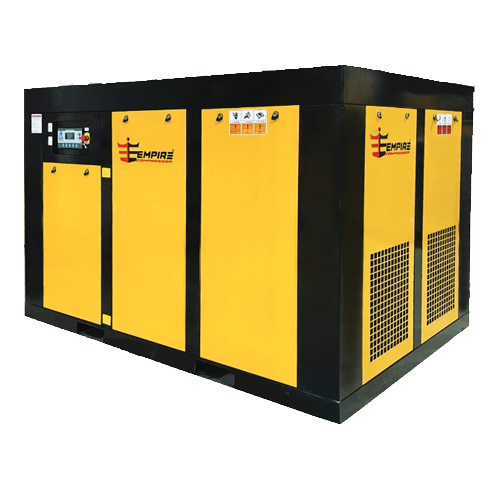

TECHNICAL SPECIFICATION OF PM+VFD SCREW COMPRESSOR

Model	CAPACITY (CFM)	Working Pressure (Kg/cm²)
Model	CAPACITY (CFM)	Working Pressure (Kg/cm²)
ECPM-10D	42.00	8.00
ECPM-20D	90.00	8.00
ECPM-30D	130.00	8.00
ECPM-40D	178.00	8.00
ECPM-50D	230.00	8.00
ECPM-60D	276.00	8.00
ECPM-75D	356.73	8.00
ECPM-100D	469.75	8.00
ECPM-120D	547.46	8.00
ECPM-150D	724.06	8.00
ECPM-175D	883.00	8.00
ECPM-200D	974.83	8.00

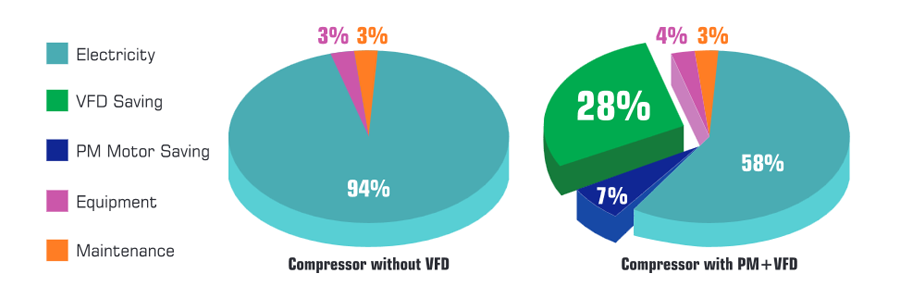

10 YEAR LIFE CYCLE COST

ADVANTAGES:-

MECHANICAL

Minimum Maintenance
Soft Start
Smooth Control

ELECTRICAL

Low Starting Current
High Efficiency
Improved Power Factor
Reduced Maximum Demand

Model	Power (KW)	RPM min	Free Air Delivery		Noise db	Machine Dimension (LWH)mm	Weight (KG)	Air outlet Inch/mm
Model	Power (KW)	RPM min	C.F.M.	(m³/mim)/Mpa	Noise db	Machine Dimension (LWH)mm	Weight (KG)	Air outlet Inch/mm
ECI-10D	7.50	2900	45.92 40.00 33.55 30.37	1.30/0.7 1.13/0.8 0.95/1.0 0.86/1.3	62±2	900650920	215	G1 3/4"
ECI-15D	11	2900	65.34 58.00 49.44 46.26	1.85/0.7 1.64/0.8 1.40/1.0 1.31/1.3	62±2	10807001090	335	G1 1"
ECI-20D	15	2900	91.83 90.00 77.70 56.86	2.60/0.7 2.54/0.8 2.20/1.0 1.61/1.3	62±2	10807001090	335	G1 1"
ECI-25D	18.50	2900	113.02 109.49 92.53 74.17	3.20/0.7 3.10/0.8 2.62/1.0 2.10/1.3	63±2	13008551150	465	G1 1"
ECI-30D	22	2900	134.21 130.00 113.02 98.90	3.80/0.7 3.68/0.8 3.20/1.0 2.80/1.3	63±2	13208801070	468	G1 1"
ECI-40D	30	2900	183.66 178.00 158.94 134.21	5.20/0.7 5.03/0.8 4.50/1.0 3.80/1.3	63±2	150010001330	620	G1 1.5"
ECI-50D	37	2900	240.17 230.00 197.79 173.06	6.80/0.7 6.51/0.8 5.60/1.0 4.90/1.3	63±2	150010001330	630	G1 1.5"
ECI-60D	45	2900	282.56 276.00 247.24 204.85	8.00/0.7 7.81/0.8 7.00/1.0 5.80/1.3	68±2	150010001380	825	G1 1.5""
ECI-75D	55	2900	381.45 356.73 317.88 300.22	10.80/0.7 10.10/0.8 9.00/1.0 8.50/1.3	68±2	204512501705	1250	G1 2"
ECI-100D	75	2900	480.35 469.75 409.71 353.20	13.60/0.7 13.30/0.8 11.60/1.0 10.00/1.3	68±2	204512501705	1450	G1 2"
ECI-120D	90	2900	582.78 547.46 515.67 434.43	16.50/0.7 15.50/0.8 14.60/1.2 12.30/1.3	68±2	234014801820	1820	DN50
ECI-150D	110	2900	759.38 724.06 618.10 572.18	21.50/0.7 20.50/0.8 17.50/1.0 16.20/1.3	68±2	256816201985	1970	DN65
ECI-75D	132	2900	925.38 883.00 777.04 724.06	26.20/0.7 25.00/0.8 22.00/1.0 20.50/1.3	72±2	256816201985	2400	DN65
ECI-200D	160	2900	1013.68 974.83 868.87 759.38	28.70/0.7 27.60/0.8 24.60/1.0 21.50/1.3	72±2	272017502125	2600	DN65

FEATURES

2 Years of warranty for Screw Air End.
Oil cooler is designed at 45º C ambient Temp. which is suitable for Indian Industrial circumstances.
All Parts are designed with universal design code / standard.
Consumable Cost is low up to 35% as compare to others.
Thermostatically operated fan motor.

One-to-One Gear Less Direct Drive Screw Air Compressor

At low speed 2900 RPM Large Air end are more efficient than high speed Air ends, delivering more compressed air for same drive power, Lower speed means increased efficiency and durability with reduced compressed air cost, Less wear & less maintenance cost.
