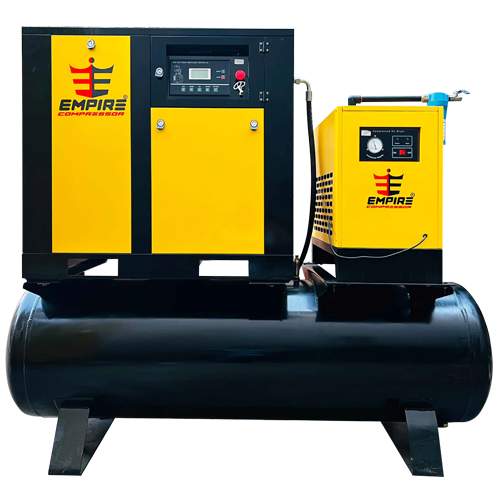

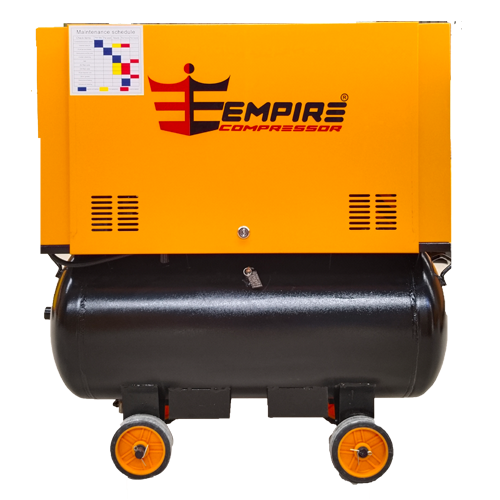

Tank Mounted Rotary Screw Air Compressor
TECHNICAL SPECIFICATION OF PM+VFD SCREW COMPRESSOR
| Model | HP | FAD CFM |
M3/min Bar | DRYER | TANK | FILTER |
|---|---|---|---|---|---|---|
| ECTM-5 5HP | 5HP | 22 CFM | 0.62/7 | 40 CFM | 120LTR | 40 CFM |
| ECTM-7.5 5HP | 7.5HP | 32 CFM | 0.91/7 | 60 CFM | 160LTR | 60 CFM |
| ECTM-10 5HP | 10HP | 45 CFM | 1.29/7 | 60 CFM | 300LTR/500LTR | 60 CFM |
| ECTM-15 5HP | 15HP | 65 CFM | 1.85/7 | 80 CFM | 500LTR/650LTR | 100 CFM |
| ECTM-20 5HP | 20HP | 91 CFM | 2.60/7 | 100 CFM | 500LTR/650LTR | 100 CFM |
INTELLIGENT CONTROLLER
- AUTOMATIC REMINDER ALERT FOR MAINTENANCE & REPLACEMENT
- INTELLIGENT HUMAN-COMPUTER INTERFACE
- SHOWING FAULT RECORD
- SHOWING REAL TIME RUNNING DATA
FILTER SYSTEM
- GERMANY BRAND OIL FILTER
- GERMANY BRAND AIR FILTER
- GERMANY BRAND AIR OIL SEPRATOR
- EQUIPPED WITH DIFFERENTIAL
- PRESSURE TRANSDUCER

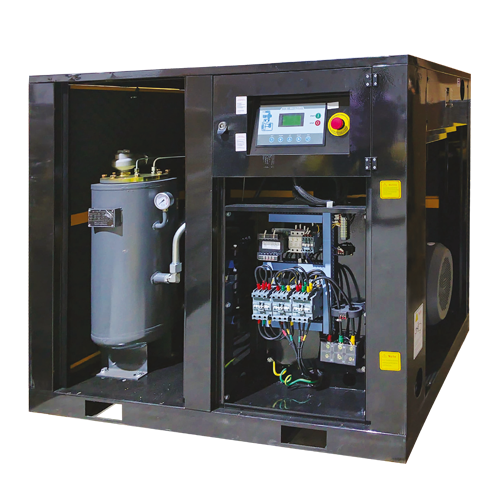

ELECTRICAL COMPONENTS
- FRANCE ORIGINAL SCHNEIDER MAKE ELECTRICAL COMPONENTS
- DEFAULT PHASE PROTECTION
- OVER TEMPERATURE PROTECTION
- IDLE LOAD PROTECTION
- AUTOMATIC UNLOADING
- AUTOMATICALLY ADJUST AIR DELIVERY
MOTOR
- HIGH EFFICIENCY IE3/1E4
- ENERGY SAVING
- INSULATION GRADE F
- PROTECTION GRADE IP55
- RELIABLE & LONG LASTING DURABILITY
INTAKE VALVE
- ADVANCE AIR FLOW CONTROL SYSTEM
- AIR DELIVERY ADJUSTMENT RANGE 0-100%
- BALANCE AIR SUPPLY & AIR CONSUMPTION ENERGY SAVING
AIR END
- LARGE ROTORS & LARGE BEARING TO ENSURE LOW SPEED LINER SCREW ROTOR
- THIRD GENERATION 5:6 MALE & FEMALE HELICAL ROTORS WITH SKF BEARING
- OVER TEMPERATURE PROTECTION
- IDLE LOAD PROTECTION
- AUTOMATIC UNLOADING
- AUTOMATICALLY ADJUST AIR DELIVERY
FEATURES:
- 2 years of warranty for screw airend
- Oil cooler is designed at 45°C ambient temp Which is suitable for indian industrial circumstances
- All parts are designed with universal design code/standard
- Consumable cost is low up to 35% as compare to others
- Thermostatically operated fan motor

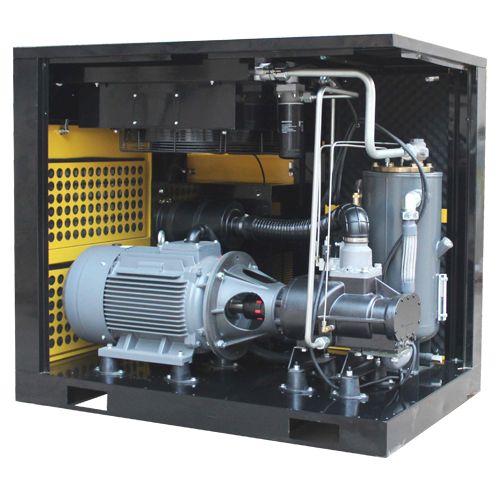

ONE TO ONE GEAR LESS DIRECT DRIVE SCREW AIR COMPRESSOR
- AT LOW SPEED 2900 RPM LARGE AIRAND ARE MORE EFFICIENT THAT HIGH SPEED AIRENDS, DELIVERING MORE COMPRESSED AIR FOR SAME DRIVE POWER, LOWER SPEED MEANS INCREASED EFFICIENCY AND DURABILITY WITH REDUCED COMPRESSED AIR COST, LESS WEAR & LESS MAINTENANCE COST.
