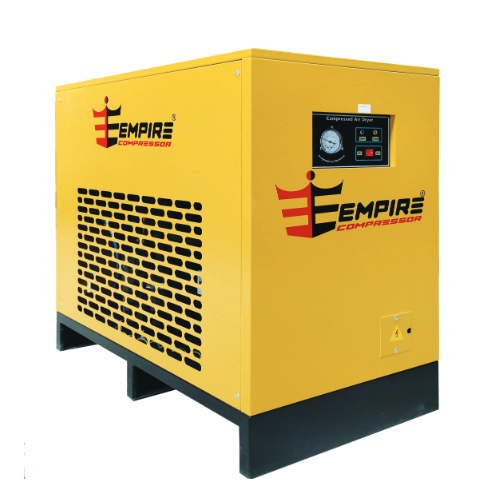

Refrigerated Air Dryer

TECHNICAL SPECIFICATION

Base Model Nominal Capacity
CFM		 Maximum
Pressure Bar		 Air Connection
In / Out		 Connected
Load (kw)		 Dimension
(L x W x H) (inch)
ECLD-002 20 16 ½"BSP(F) 0.21 20 17 25
ECLD-004 40 16 ½"BSP(F) 0.36 24 19 28
ECLD-006 60 16 ½"BSP(F) 0.45 28 17 27
ECLD-008 80 16 1"BSP(F) 0.60 25 22 35
ECLD-010 100 16 1"BSP(F) 0.67 30 18 29
ECLD-012 120 16 1"BSP(F) 1.00 34 19 33
ECLD-015 150 16 1½"BSP(F) 1.00 34 19 33
ECLD-020 200 16 1½"BSP(F) 1.40 40 22 37
ECLD-025 250 16 2"BSP(F) 1.70 40 22 37
ECLD-030 300 16 2"BSP(F) 1.80 40 22 37
ECLD-040 400 16 2"BSP(F) 2.40 48 26 39
ECLD-050 500 16 3"NB ASME Flg 2.70 48 26 39
ECLD-060 600 16 3"NB ASME Flg 2.80 65 36 48
ECLD-075 750 16 3"NB ASME Flg 3.80 65 36 48
ECLD-100 1000 16 4"NB ASME Flg 5.00 80 47 58
ECLD-125 1250 16 4"NB ASME Flg 5.70 80 70 80
ECLD-150 1500 12.5 5"NB ASME Flg 6.80 82 50 64
ECLD-200 2000 12.5 6"NB ASME Flg 8.70 82 50 64
ECLD-250 2500 12.5 6"NB ASME Flg 11.00 88 80 90

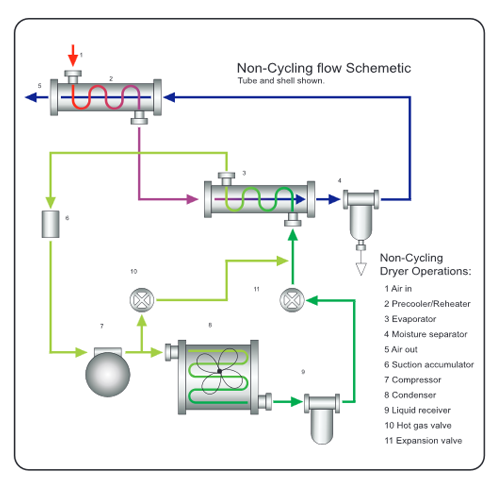

SCHEMATIC DIAGRAM

HIGH PRESSURE AIR DRYER

Model Capacity CFM Maximum Working
Pressure Bar
ECHD-002 20 35
ECHD-004 40 35
ECHD-006 60 35
ECHD-008 80 35
ECHD-010 100 35
ECHD-012 125 35
ECHD-015 150 35
ECHD-020 200 35

FEATURES

  • Eco friendly refrigerant
  • Energy efficient heat exchanger
  • Consistent deu point 3-4° C
  • More reliability
  • Ease installation
  • Heavy Structure
