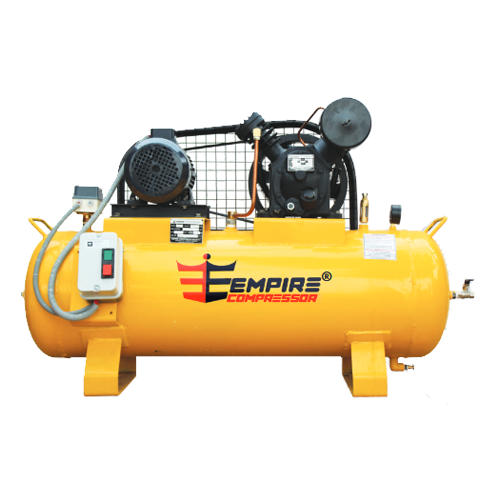

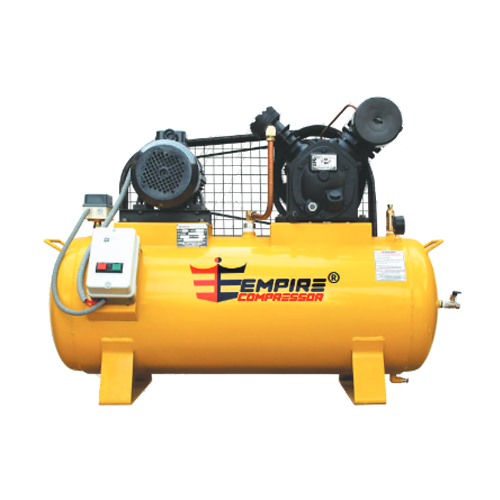

TWO STAGE AIR COMPRESSOR
| Model | Motor H.P. |
Piston Displacement | Maximum Pressure | Tank Capacity Liters |
||
|---|---|---|---|---|---|---|
| C.F.M. | L.P.M. | Kg/Cm2 | Psig | |||
| ECI-412 | 1.00 | 3.75 | 132 | 10.00 | 145 | 70 |
| ECI-512 | 2.00 | 7.50 | 264 | 10.00 | 145 | 135 |
| ECI-4440 | 3.00 | 11.25 | 318 | 12.50 | 175 | 160 |
| ECI-334 | 3.00 | 10.80 | 305 | 12.50 | 175 | 160 |
| ECI-442 | 5.00 | 17.30 | 490 | 12.50 | 175 | 225 |
| ECI-553 | 7.50 | 26.23 | 740 | 12.50 | 175 | 250 |
| ECI-3600 | 7.50 | 28.50 | 806 | 12.50 | 175 | 250 |
| ECI-3545 | 7.50/10.00 | 37.80 | 1070 | 12.50 | 175 | 300 |
| ECI-171T | 10.00/12.50 | 40.00/49.50 | 1130/1400 | 12.50 | 175 | 300 |
| ECI-715T | 15.00/20.00 | 63.50/84.80 | 1800/2310 | 12.50 | 175 | 500 |
| ECI-725T | 25.00/30.00 | 99.00/110.00 | 2800/3100 | 12.50 | 175 | 500 |
| ECI-171T2 | 15.00 | 55.00 | 1550 | 17.50 | 250 | 500 |
