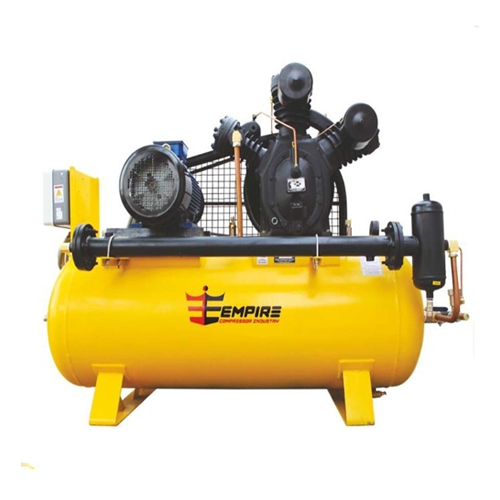

Multi Stage High Pressure Compressor
| Model | Motor H.P. |
Piston Displacement | Maximum Pressure | Tank Capacity Liters |
||
|---|---|---|---|---|---|---|
| C.F.M. | L.P.M. | Kg/Cm2 | Psig | |||
| ECI-331 | 3.00 | 7.60 | 210 | 35.15 | 500 | 150 |
| ECI-57T2 | 7.50/10.00 | 24.00/32.25 | 680/915 | 35.15 | 500 | 300 |
| ECI-57T2 | 12.50 | 36.36 | 1030 | 35.15 | 500 | 300 |
| ECI-67T2 | 15.00/20.00 | 41.80/49.50 | 1180/1400 | 35.15/56.25 | 500-800 | 500 |
| ECI-75TH | 15.00/20.00 | 55.00/73.00 | 1557/1980 | 30.00 | 427 | 500 |
| ECI-85TH | 25 | 90 | 2550 | 30.00 | 427 | 500 |
| ECI-75TH-2 | 20+20 | 146 | 3960 | 30.00 | 427 | 750 |
| ECI-67T2-2 | 20+20 | 99 | 2800 | 35.00 | 500 | 750 |
